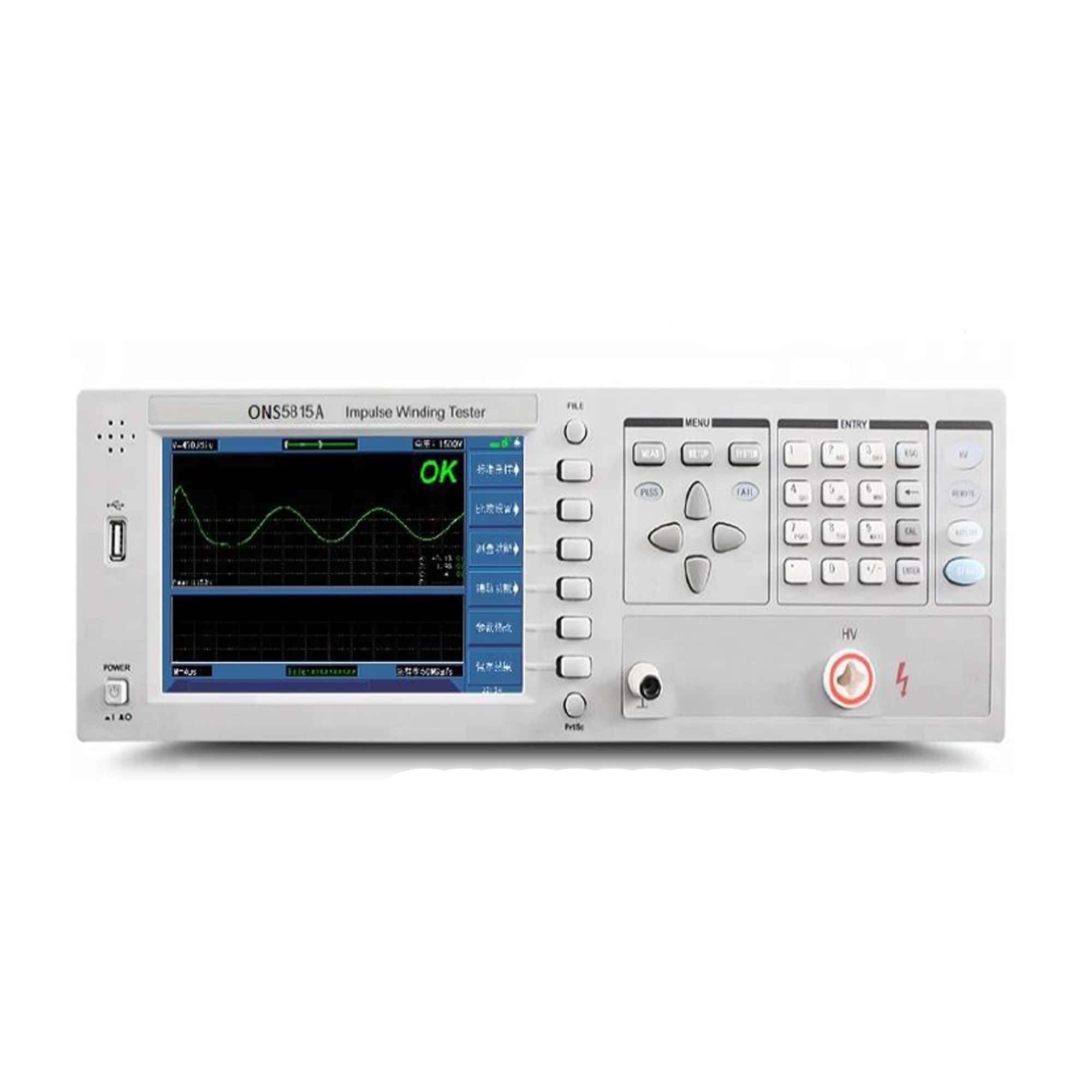

ONS5800 Impulse Winding Tester
ONS5800 Impulse Winding Tester
Overview
Waveform sampling rate is 100Msps / 200Msps, storage depth is 6.5kBytes.
7 inch 65k color 16:9 TFT display, resolution 800×480.
Comparison of four waveforms: area, area difference, corona and phase difference.
Excellent test repeatability ensures stable and consistent results.
Horizontal stretching & movement of waveform and amplitude zoom supported.
Powerful corona extraction function detects insulation problems early.
Automatic storage function after instrument parameters modification.
Boot files can be automatically loaded.
Standard automatic acquisition function for appropriate sampling rate selection.
Destructive tests help choose correct test voltage.
Demagnetizing pulse ensures waveform consistency.
Standard sample averaging function supports up to 32 times averaging.
Firmware upgrade supported via USB HOST.
U disk supports FAT16 and FAT32 file systems.
Current screen image or waveform data can be saved via shortcut keys.
Standard RS232C, HANDLER, USB HOST, USB Device. Optional GPIB and LAN interface.
Brief Introduction
ONS5800 series Impulse winding tester adopts a 7-inch 800×480 color TFT LCD display, high-performance 32-bit processor and high-speed FPGA.
Sampling rate 100Msps / 200Msps and storage depth 6.5k bytes make testing more accurate.
High-voltage power supply with high stability and high-voltage switching devices controlled by thyristor module improve accuracy, stability and reliability.
Data communication with PC, remote control and real-time graphics storage are supported.
Technical Specification
Model Information
| Model No. | ONS5813 | ONS5813A | ONS5815 | ONS5815A |
|---|---|---|---|---|
| Sampling Rate | 100Msps | 200Msps | 100Msps | 200Msps |
| Channel Numbers | 1 Channel | |||
| Measurement Speed | 12 times/sec | |||
| Inductance Test Range | ≥10μH | |||
| Input Impedance | 10MΩ | |||
Pulse Voltage
| ONS5813 / ONS5813A | 100V~3000V, 10V step, Accuracy ±5% + 15V |
| ONS5815 / ONS5815A | 100V~5000V, 10V step, Accuracy ±5% + 15V |
Pulse Energy
| ONS5813 / ONS5813A | Maximum 0.09 J |
| ONS5815 / ONS5815A | Maximum 0.25 J |
Waveform Acquisition
| Sampling Rate Adjustable | 100Msps: 10 grade adjustable 200Msps: 11 grade adjustable |
| Sampling Resolution | 8 Bits |
| Waveform Storage Depth | 6500 Bytes |
| Sample Average | 1–32 |
Display
| Screen | 7 inch 65k color 800×480 TFT display |
| Waveform Display Range | 650×256, supports x2, x3 enlarge |
Judgment & Measurement
| Judgment Method | Area, area difference, corona, phase difference |
| Waveform Parameters | Voltage, frequency, time |
| Repeatability Accuracy | ±1% |
Trigger Mode
| Trigger Modes | Manual trigger, external trigger, bus trigger, internal trigger |
Output Indication
| Result Indication | OK/NG screen display, LED indication, buzzer alarm |
Memory
| Internal Memory | Store 300 groups of waveform data and parameter settings |
| External Memory | Store 600 groups of waveform data and parameter settings |
Interface
| Standard | RS232C, HANDLER, USB HOST, USB Device |
| Optional | GPIB, LAN interface |
Ordering Information
ONS5800 Series Impulse Winding Tester
Instrument Accessories
ONS26035 High Voltage Test Cables
ONS6801-01 Pedal Start Switch
Power Cable
