Electric Vehicle Supply Equipment ATS

EVSE ATS

Electric Vehicle Supply Equipment ATS

Description

Preen’s EVSE ATS is designed for verification of AC and DC EV chargers, which comply to regulation of SAE J1772 and CNS 15511, NB/T 33001, NB/T 33002, NB/T 33008.1 and NB/T 33008.2, GB/T 18487.1 and GB/T 27930; and Interoperability test specifications of electric vehicle conductive charging.

This system mainly provides electric performance test and communication protocol test for AC and DC charger, integrating the testing items of related standards to optimize testing efficiency.

It can simulate the output and communication operation of the charger to test whether the magnetic field generated by the high-capacity transmission will interfere with the communication. And it also can simulate the corresponding protection of the charger when the signal of control pilot changes during the charging process.

Product Features

Complied with relevant national regulations: NB/T 33001, NB/T 33002, NB/T 33008.1, NB/T 33008.2, GB/T 18487.1 and GB/T 27930.

Ideal for high-power charger testing: equipped with Preen’s high power AC sources and loads, featuring various models and power levels.

Flexible system configuration: can be customized for customer’s need.

Suitable for various EV charger sockets.

Simulate the corresponding protection of the charger when the signal of control pilot changes according to each working conditions.

Capable to perform touch current insulation testing.

Intuitive control software, easy to use.

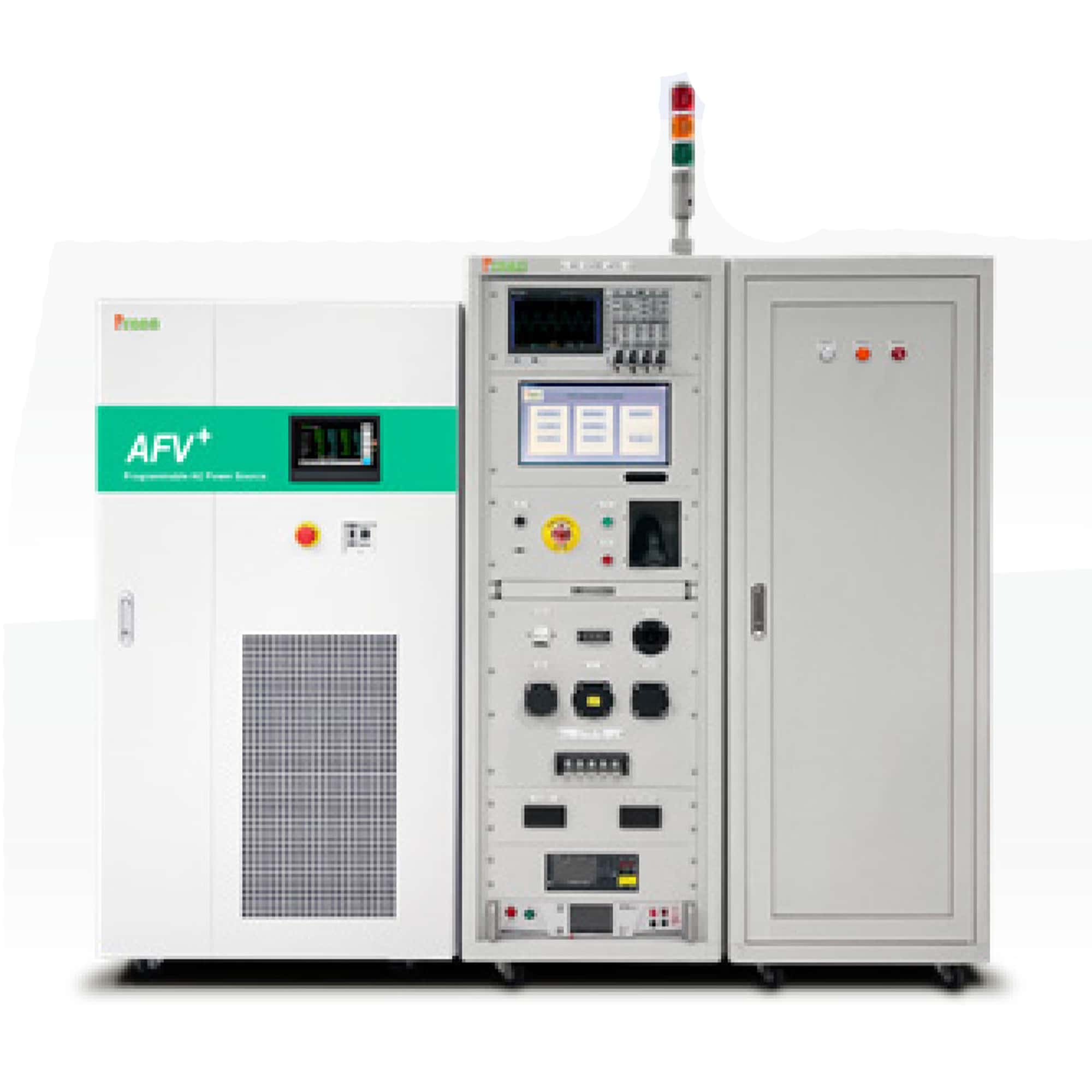

Structure of EVSE ATS

Control System

Industrial Computer

Control Software

Measurement Equipment

Digital Multimeter

Safety Tester

Oscilloscopes

Power Meter

Main Test Flow

High Performance Programmable AC Power Source → AC and DC Charger → Loads

Instrument and Equipment Overview

Supported Charger Standards

US & Japan – J1772 AC Type1

Europe – Type2

China – GB/T

China – NACS
